OSADA ELECTRIC HANDPIECE SYSTEMS

FOR ORAL SURGERY & IMPLANT



The Right Approach to HIGH TORQUE/LOW SPEED OPERATION

ALL IN ONE PORTABLE SYSTEM XL-S30

The Safe AIR_FREE Surgical Drill System Especially Designed for Oral Surgeons.  All Electric High Torque / Low Speed (10-60,000 rpm) Micromotor Handpiece and Built-in Peristaltic Irrigation System.

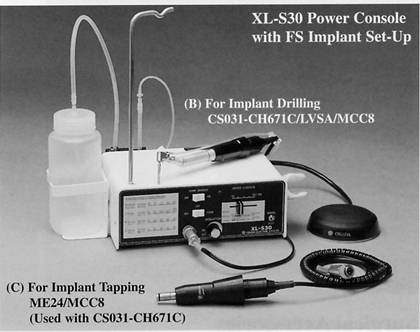

·             XL-S30 Power Console (800-30,000 rpm)

Comes with a reservoir, a hanging rod for irrigation bags, a complete set of tubing, an FS on/off footswitch, a rheostat slide for exact speed settings, and a convenient speed chart on the faceplate.

·             Irrigation can be simultaneously activated by the handpiece switches, or independently controlled by the irrigation volume dial.



If irrigation is performed separately from the handpiece unit,  XL-30W table top model  is recommended.

If only for the oral surgery, the all in one floor console PEDO-30W may be convenient.

(C) For Implant Tapping:



Required Speed Range: 10-50 rpm

ME24 (16:1) Micromotor / MCC8 cord

Extra Slow / High Torque Micromotor

Use same contra handpiece as in Drilling:

CS031 (2.7:1) / CH67IC (2:1),

Total Reduction Ratio 86:1

(B) For Implant Drilling:



Required Speed Range: 800-2,000 rpm

LVSA (1:1) Micromotor /  MCC8 Cord



And CS031 (2.7:1) / CH67IC (2:1):

Total 5.4:1 Contra Handpiece

With internal and external pipes

CH67IC(2:1)-CS-031(2.7:1)

Total 5.4:1 Contra Shank-head

With Internal & External Irrigation Pipes

LVSA 1:1

MICROMOTOR

ME24 16:1

MICROMOTOR

MCC8 CORD
